SANY Sprocket 14105157 for SY365 / SY385

Quick Specs

Product Introduction

The 14105157 sprocket is the toothed drive wheel mounted on the final drive of SANY SY365 and SY385 excavators. Its teeth engage the track chain and convert the output of the travel motor into track movement, so it is the component that actually drives the machine forward and back.

Sprocket teeth wear as they engage and release the track links. Once the tooth profile is hooked or worn past the service limit, the chain rides high on the teeth, walking becomes rough and the track links and bushings wear faster. If your SY365 or SY385 needs a replacement sprocket with this part number, 14105157 is the cross-referenced item to check against the sprocket you are taking off.

Application

Mounted on the final drive of SANY SY365 and SY385 excavators, where the toothed rim engages the track chain to drive the machine. It is part of the undercarriage drive group, together with the track chain, track shoes, idler and track rollers.

Specifications

Compatible SANY Models

• SY365 - Sprocket 14105157 for the final drive of SANY SY365 excavators.
• SY385 - Sprocket 14105157 for the final drive of SANY SY385 excavators.

How to Confirm the Correct Part

• Match the part number "14105157" against the sprocket being replaced.
• Confirm your machine model is SY365 or SY385.
• Check overall dimensions 87 x 755.76 x 757.87 mm and net weight 84.6 kg against the sprocket being replaced.
• Check the bolt-hole pattern on the mounting flange against your final drive, and compare the tooth count with the worn sprocket.
• Contact Averdyn with your machine serial number if you are unsure about compatibility.

Why Choose Averdyn

Your SANY Parts Sourcing Contact

Averdyn is your dedicated SANY parts sourcing contact for undercarriage components including sprocket 14105157. Tell us the part number and machine model - we handle the cross-reference and supply options for you.

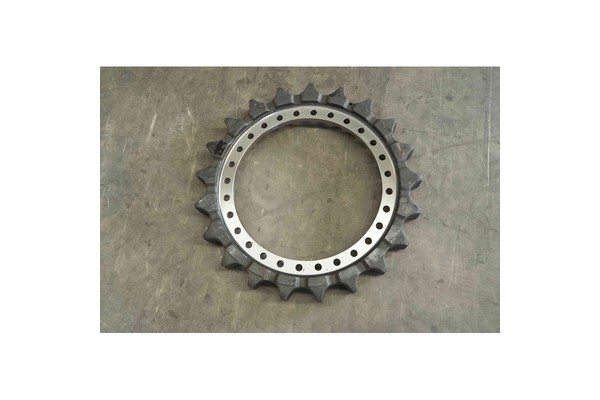

Product Overview of 14105157

The 14105157 sprocket fits SANY SY365 and SY385. Steel, 84.6 kg, 87 x 755.76 x 757.87 mm. See the image above for the actual part before ordering.

Technical Inquiry and Delivery Planning

Send your machine serial number, part number and quantity. We confirm fitment, supply options and current lead time before you commit to an order.

Product Detail Photos

SANY Sprocket 14105157 - top view

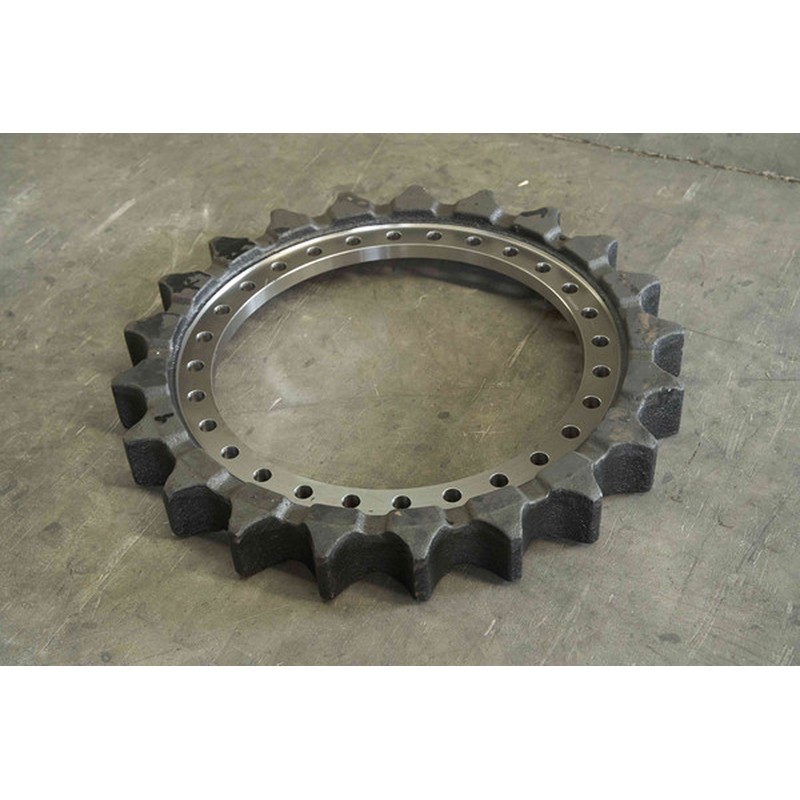

SANY Sprocket 14105157 - angled view

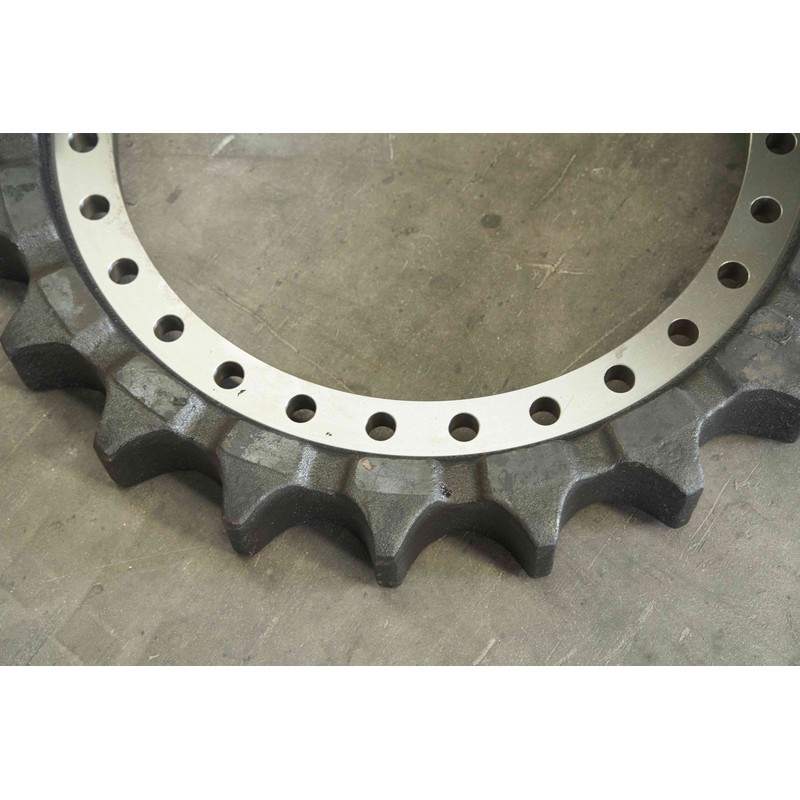

SANY Sprocket 14105157 - mounting flange and teeth

Trust and Service

• Cross-referenced part number verified against the SANY SY365 / SY385 application list.
• Genuine SANY / OEM / Selected Aftermarket supply options based on part number and availability.
• Stock and lead time confirmed on inquiry - no surprise ETAs.
• Export-ready packaging and worldwide shipping supported on request.
• Specs (84.6 kg, 87 x 755.76 x 757.87 mm, steel) verified against the parameter sheet.

Related Products

Related parts listed below are not direct substitutes for 14105157. They are alternative part numbers for other SANY models or other sub-systems. Always confirm compatibility before ordering.

• 12123787 - SANY Carrier Roller (SY365 / SY245 / SY385)
• 60053662 - SANY Track Shoe (SY365 / SY335)
• 13124497 - SANY Pin Shaft (SY385 / SY365)
• 13623374 - SANY Pin Shaft (SY365 / SY385)
• 14039205 - SANY Bushing

Original vs OEM

The 14105157 sprocket is supplied as Genuine SANY, OEM or Selected Aftermarket depending on stock and lead time. All options are cross-referenced to the original SANY part number and intended for the same SY365 / SY385 application.

FAQ

General FAQ

1. Q: Do you have stock?
A: Stock varies by part number. Send your inquiry and we will confirm current availability.

2. Q: Do you ship worldwide?
A: Yes. We support worldwide shipping; lead time depends on destination and part.

3. Q: Is this genuine SANY?
A: Supply options include Genuine SANY, OEM and Selected Aftermarket. We confirm which is available for your part number.

4. Q: Can I get a quotation first?
A: Yes. Send part number, quantity and machine model - we reply with options and lead time.

5. Q: What if the part does not fit?
A: Contact us with photos and serial number before returning. We help verify fitment.

14105157 Specific FAQ

1. Q: Which SANY models does 14105157 fit?
A: SY365 and SY385 machines.

2. Q: What is the material and weight?
A: Steel, 84.6 kg.

3. Q: What are the dimensions?
A: 87 x 755.76 x 757.87 mm as given on the parameter sheet. Measure the old sprocket to be sure before ordering.

4. Q: Can I confirm fitment before ordering?
A: Yes. Send your machine serial number and the part number from the old sprocket - we help verify.

5. Q: Do I need to replace anything else at the same time?
A: Sprockets are usually checked together with the track chain, track shoes, idler and track rollers. Send your machine model and serial number and we help you work out what is needed.

Request the Correct Sprocket

Send your inquiry with: Name, Email, Phone, Message (Tell us your machine model and part number 14105157). Click Send Inquiry on the inquiry panel.
