SANY Locating Pin 13124496 for SY365 / SY485 / SY500

Quick Specs

Product Introduction

The 13124496 locating pin is a small machined steel pin used on SANY SY365, SY485 and SY500 excavators. It measures 14 x 14 x 30 mm and weighs 0.038 kg. The pin is cylindrical with chamfered ends, so it slides into its mating hole and holds two structural parts in their correct relative position.

A locating pin, also known in the industry as a dowel pin, does not carry the main load of a joint - that is the job of the bolts and the main pins around it. Its job is precision: it fixes the alignment between two parts so that when the joint is disassembled and reassembled, everything returns to exactly the same position. Because it sits in a close-fitting hole, a locating pin wears on its outside diameter. If the pin you are taking out is scored, stepped or loose in its bore, replace it - the part number to check against the pin in your hand is 13124496.

Application

Used as the locating pin for SANY SY365, SY485 and SY500 excavators under part number 13124496. It keeps two mating structural parts aligned at their intended relative position. When fitting a replacement, the details worth comparing against the old pin are the 14 x 14 x 30 mm overall size, the chamfered end profile and the surface condition of the pin and its bore.

Specifications

Compatible SANY Models

• SY365 - Locating Pin 13124496 for SANY SY365 excavators.
• SY485 - Locating Pin 13124496 for SANY SY485 excavators.
• SY500 - Locating Pin 13124496 for SANY SY500 excavators.

How to Confirm the Correct Part

• Match the part number "13124496" against the pin being replaced.
• Confirm your machine model is SY365, SY485 or SY500.
• Check the overall size 14 x 14 x 30 mm and net weight 0.038 kg against the old pin.
• Measure the pin diameter at several points - a worn locating pin is often stepped or undersized where it runs in the bore.
• Compare the chamfered ends and the overall length with the pin you are taking out before ordering.
• Contact Averdyn with your machine serial number if you are unsure about fitment.

Why Choose Averdyn

Your SANY Pin and Fastener Sourcing Contact

Averdyn is your sourcing contact for locating pins, pin shafts, bushings, bolts and nuts for SANY machinery. Tell us part number 13124496 and your machine model - we handle the cross-reference and supply options for you.

Product Overview of 13124496

The 13124496 locating pin fits SANY SY365, SY485 and SY500 machines. Steel, 0.038 kg, 14 x 14 x 30 mm. See the image above for the actual part before ordering.

Technical Inquiry and Delivery Planning

Send your machine serial number, part number and quantity. We confirm fitment, supply options and current lead time before you commit to an order.

Product Detail Photos

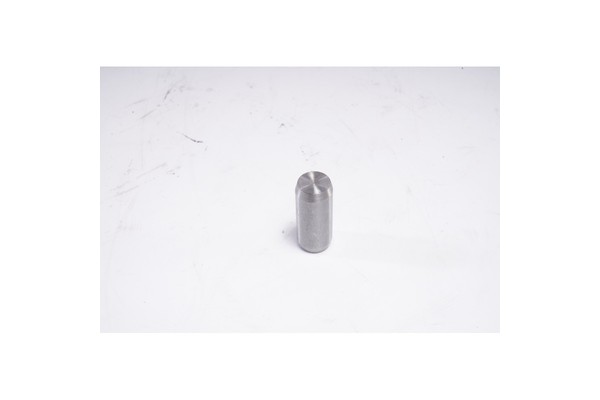

SANY Locating Pin 13124496 - machined steel pin, overall view

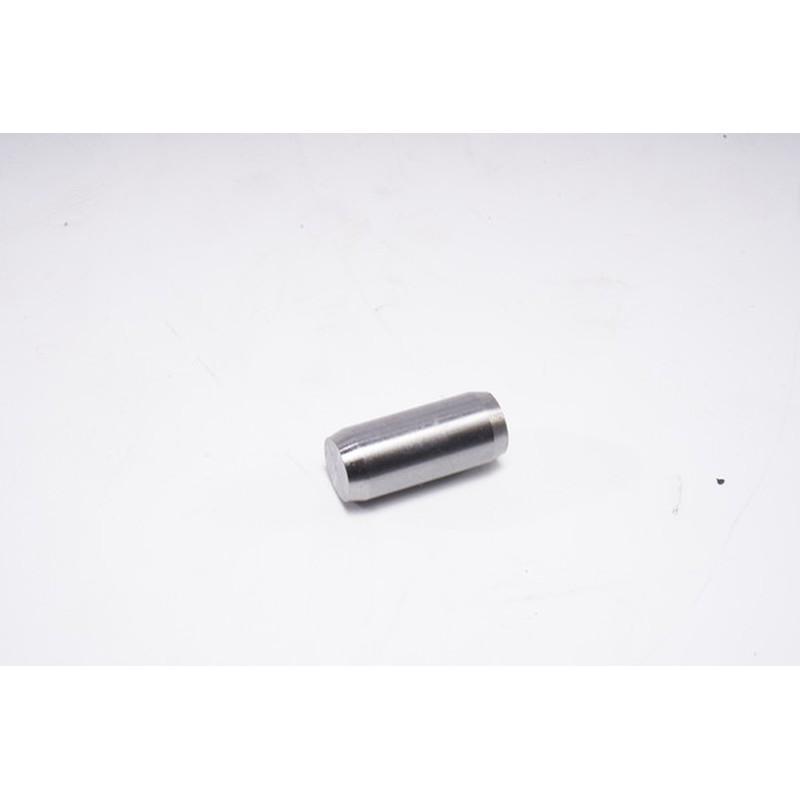

SANY Locating Pin 13124496 - cylindrical body with chamfered ends

Trust and Service

• Cross-referenced part number verified against the SANY SY365 / SY485 / SY500 application list.
• Genuine SANY / OEM / Selected Aftermarket supply options based on part number and availability.
• Stock and lead time confirmed on inquiry - no surprise ETAs.
• Export-ready packaging and worldwide shipping supported on request.
• Specs (0.038 kg, 14 x 14 x 30 mm, steel) verified against the parameter sheet.

Related Products

Related parts listed below are not direct substitutes for 13124496. They are alternative part numbers for pin and fastener applications on SANY work equipment. Always confirm compatibility before ordering.

• 13124497 - SANY Pin Shaft
• 13623374 - SANY Pin Shaft
• A810303990032 - SANY Pin Shaft

Original vs OEM

The 13124496 locating pin is supplied as Genuine SANY, OEM or Selected Aftermarket depending on stock and lead time. All options are cross-referenced to the original SANY part number and intended for the same SY365 / SY485 / SY500 application.

FAQ

General FAQ

1. Q: Do you have stock?
A: Stock varies by part number. Send your inquiry and we will confirm current availability.

2. Q: Do you ship worldwide?
A: Yes. We support worldwide shipping; lead time depends on destination and part.

3. Q: Is this genuine SANY?
A: Supply options include Genuine SANY, OEM and Selected Aftermarket. We confirm which is available for your part number.

4. Q: Can I get a quotation first?
A: Yes. Send part number, quantity and machine model - we reply with options and lead time.

5. Q: What information do you need before ordering?
A: The SANY part number, your machine model and serial number, the quantity, and the destination port or address.

6. Q: How long is delivery?
A: Delivery depends on the part number and destination. We confirm current lead time together with your quotation.

7. Q: What if the part does not fit?
A: Contact us with photos and serial number before returning. We help verify fitment.

13124496 Specific FAQ

1. Q: Which SANY models does 13124496 fit?
A: SY365, SY485 and SY500 machines.

2. Q: What is the material and weight?
A: Steel, 0.038 kg.

3. Q: What are the dimensions?
A: 14 x 14 x 30 mm as given on the parameter sheet. Measure the old pin to be sure before ordering.

4. Q: What does a locating pin do?
A: It fixes the relative position between two mating parts so they stay precisely aligned, especially when the joint is taken apart and reassembled. If you are unsure which position on your machine carries part number 13124496, send us a photo together with your machine serial number.

5. Q: How do I know if my locating pin needs replacing?
A: Check for scoring, a stepped or undersized diameter, or a loose fit in the bore. A worn locating pin lets the joint shift out of alignment, so it should be renewed rather than re-used.

Request the Correct Locating Pin

Send your inquiry with: Name, Email, Phone, Message (Tell us your machine model and part number 13124496). Click Send Inquiry on the inquiry panel.
