SANY Track Shoe 13861265 for SY245 / SY265

Quick Specs

Product Introduction

The 13861265 track shoe is the three-rib crawler pad used on SANY SY245 and SY265 machines. It is made from track steel, weighs 24.3 kg and measures 48.06 x 800 x 219 mm, and is bolted to the track link with track bolts to form the track assembly that the sprocket drives.

A track shoe is the ground-engaging pad of the undercarriage. Its ribs bite into the ground to give the machine traction, while the plate itself protects the track link underneath and spreads the machine weight over a wider area. Because the shoe is the part that touches rock, mud and concrete all day, it wears faster than anything else on the undercarriage: the ribs flatten, the plate can crack at the bolt holes and the holes themselves elongate. A worn shoe reduces traction, increases shock load on the rollers and idlers and lets the machine sit lower at the front. If you are ordering for a repair, check 13861265 against the number on the shoe you are taking off.

Application

Used as the crawler track shoe for SANY SY245 and SY265 machines under part number 13861265. It mounts to the track link with track bolts, so the bolt hole pattern, the rib profile and the plate width are the details worth comparing against the shoe you are replacing.

Specifications

Compatible SANY Models

• SY245 - Track Shoe 13861265 for SANY SY245 machines.
• SY265 - Track Shoe 13861265 for SANY SY265 machines.

How to Confirm the Correct Part

• Match the part number "13861265" against the track shoe being replaced.
• Confirm your machine model is SY245 or SY265.
• Check the overall dimensions 48.06 x 800 x 219 mm and net weight 24.3 kg against the old shoe.
• Compare the bolt hole pattern and hole spacing with the shoe you are taking off.
• Compare the rib profile and the plate width, since both are matched to the track link and to the machine class.
• Inspect the old shoe for cracked plate sections or elongated bolt holes before ordering, so any damaged track bolts can be replaced at the same time.
• Contact Averdyn with your machine serial number if you are unsure about fitment.

Why Choose Averdyn

Your SANY Undercarriage Parts Contact

Averdyn is your sourcing contact for track shoes, track bolts, rollers, idlers and other undercarriage components for SANY machinery. Tell us part number 13861265 and your machine model - we handle the cross-reference and supply options for you.

Product Overview of 13861265

The 13861265 three-rib track shoe fits SANY SY245 and SY265 machines. Track steel, 24.3 kg, 48.06 x 800 x 219 mm. See the image above for the actual part before ordering.

Technical Inquiry and Delivery Planning

Send your machine serial number, part number and quantity. We confirm fitment, supply options and current lead time before you commit to an order.

Product Detail Photos

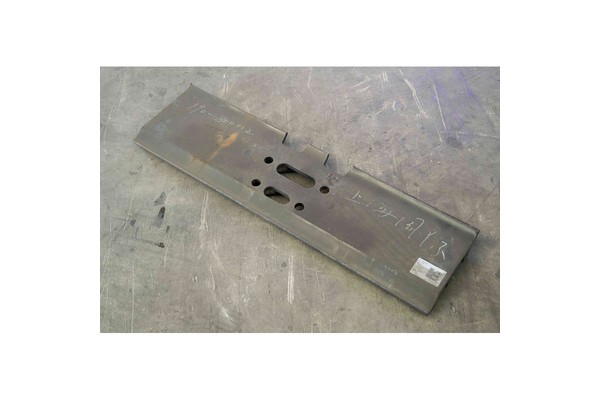

SANY Track Shoe 13861265 - three-rib crawler pad, overall view

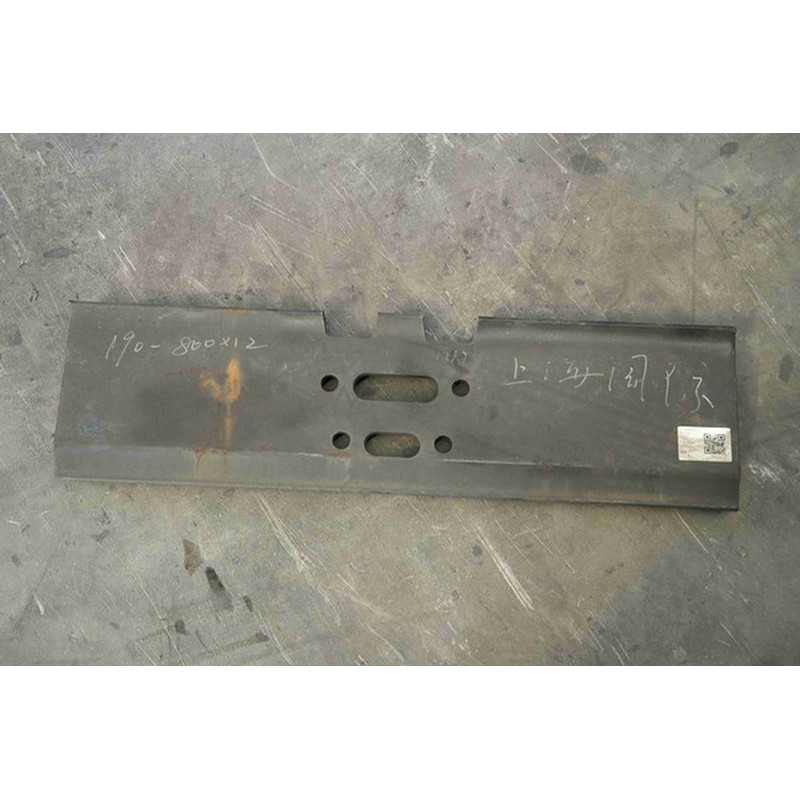

SANY Track Shoe 13861265 - bolt hole pattern and rib profile

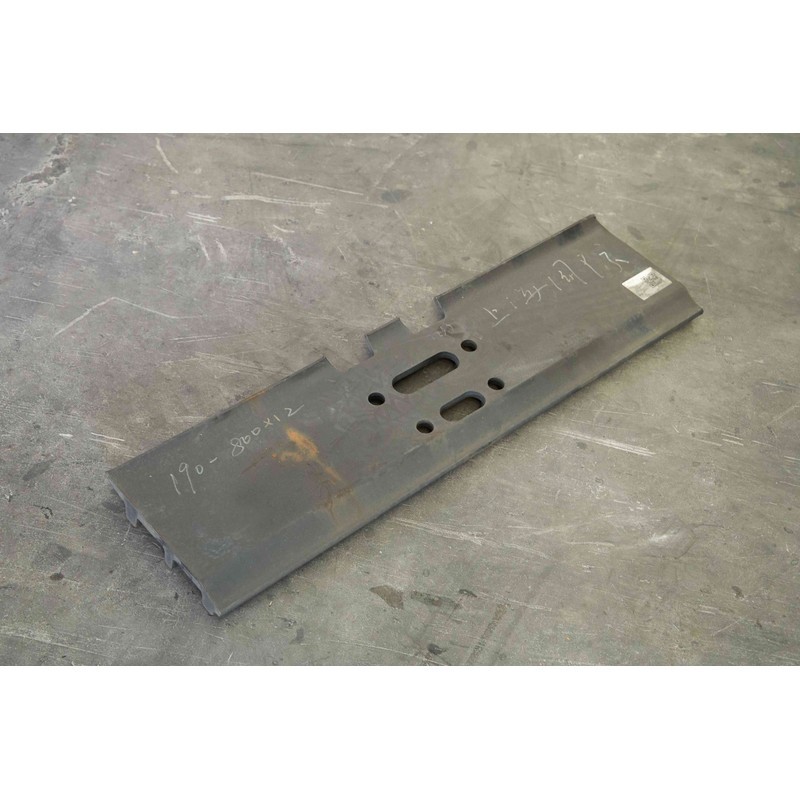

SANY Track Shoe 13861265 - plate body, mounting holes and rib detail

Trust and Service

• Cross-referenced part number verified against the SANY SY245 / SY265 application list.
• Genuine SANY / OEM / Selected Aftermarket supply options based on part number and availability.
• Stock and lead time confirmed on inquiry - no surprise ETAs.
• Export-ready packaging and worldwide shipping supported on request.
• Specs (24.3 kg, 48.06 x 800 x 219 mm, track steel) verified against the parameter sheet.

Related Products

Related parts listed below are not direct substitutes for 13861265. They are alternative part numbers for the undercarriage of SANY machinery. Always confirm compatibility before ordering.

• 60053662 - SANY Track Shoe (SY365 / SY335)
• SSY005194639 - SANY Track Bolt (multiple SANY machine types)
• 12123787 - SANY Carrier Roller Assembly (SY365 / SY245 / SY385)

Original vs OEM

The 13861265 track shoe is supplied as Genuine SANY, OEM or Selected Aftermarket depending on stock and lead time. All options are cross-referenced to the original SANY part number and intended for the same SY245 / SY265 application.

FAQ

General FAQ

1. Q: Do you have stock?
A: Stock varies by part number. Send your inquiry and we will confirm current availability.

2. Q: Do you ship worldwide?
A: Yes. We support worldwide shipping; lead time depends on destination and part.

3. Q: Is this genuine SANY?
A: Supply options include Genuine SANY, OEM and Selected Aftermarket. We confirm which is available for your part number.

4. Q: Can I get a quotation first?
A: Yes. Send part number, quantity and machine model - we reply with options and lead time.

5. Q: What information do you need before ordering?
A: The SANY part number, your machine model and serial number, the quantity, and the destination port or address.

6. Q: How long is delivery?
A: Delivery depends on the part number and destination. We confirm current lead time together with your quotation.

7. Q: What if the part does not fit?
A: Contact us with photos and serial number before returning. We help verify fitment.

13861265 Specific FAQ

1. Q: Which SANY models does 13861265 fit?
A: SY245 and SY265 machines.

2. Q: What is the material and weight?
A: Track steel, 24.3 kg.

3. Q: What are the dimensions?
A: 48.06 x 800 x 219 mm as given on the parameter sheet. Measure the old shoe to be sure before ordering.

4. Q: How many track shoes does a machine need?
A: The quantity depends on the machine model and track configuration, and shoes are normally replaced in sets or in matched groups so that wear stays even across the chain. Tell us how many links you are re-shoeing and we will quote accordingly. We do not publish a count here because it varies with machine configuration.

5. Q: Do I need new track bolts as well?
A: If the old bolt holes are elongated, or the bolts have been in service for a long time, fitting new track bolts at the same time is the usual practice. Send us the machine model and we will quote track bolts together with the shoes.
