SANY Carrier Roller 12168856 for SY215 / SY235 / SY205

Quick Specs

Product Introduction

The 12168856 carrier roller is the upper roller that carries the track chain on SANY SY215, SY235 and SY205 excavators. It measures 166.54 x 166.53 x 293.5 mm and weighs 21.9 kg. The roller is a steel assembly: a machined body with two side flanges runs on a shaft, and each end carries a mounting bracket that bolts to the track frame. The flanged body is what keeps the chain running in line above the track frame.

A carrier roller wears on the running surface and around the shaft ends rather than all over. Flats, steps or heavy scoring on the tread, oil weeping from the shaft end, and roughness or play when the roller is turned by hand are the usual reasons to renew one, because a worn carrier roller lets the track chain run low and slack. The part number to match against the old roller is 12168856, and the details worth comparing first are the 166.54 x 166.53 x 293.5 mm overall size and the position of the mounting bracket at each end.

Application

Used as a carrier roller in the track undercarriage of SANY SY215, SY235 and SY205 excavators under part number 12168856. It sits in the group of undercarriage parts that includes the track shoes, track links, track bolts, track nuts and the idler. When fitting a replacement, the details worth comparing against the old roller are the 166.54 x 166.53 x 293.5 mm overall size, the flange diameter and the bracket position at both ends.

Specifications

Compatible SANY Models

• SY215 - Carrier Roller 12168856 for SANY SY215 excavators.
• SY235 - Carrier Roller 12168856 for SANY SY235 excavators.
• SY205 - Carrier Roller 12168856 for SANY SY205 excavators.

How to Confirm the Correct Part

• Match the part number "12168856" against the roller being replaced.
• Confirm your machine model is SY215, SY235 or SY205.
• Check the overall size 166.54 x 166.53 x 293.5 mm and net weight 21.9 kg against the old roller.
• Compare the flange diameter and the mounting bracket position at each end with the roller you are taking out.
• Contact Averdyn with your machine serial number if you are unsure about fitment.

Why Choose Averdyn

Your SANY Undercarriage Sourcing Contact

Averdyn is your sourcing contact for carrier rollers, track shoes, track links, idlers and undercarriage parts for SANY machinery. Tell us part number 12168856 and your machine model - we handle the cross-reference and supply options for you.

Product Overview of 12168856

The 12168856 carrier roller fits SANY SY215, SY235 and SY205 machines. Steel, 21.9 kg, 166.54 x 166.53 x 293.5 mm. See the image above for the actual part before ordering.

Technical Inquiry and Delivery Planning

Send your machine serial number, part number and quantity. We confirm fitment, supply options and current lead time before you commit to an order.

Product Detail Photos

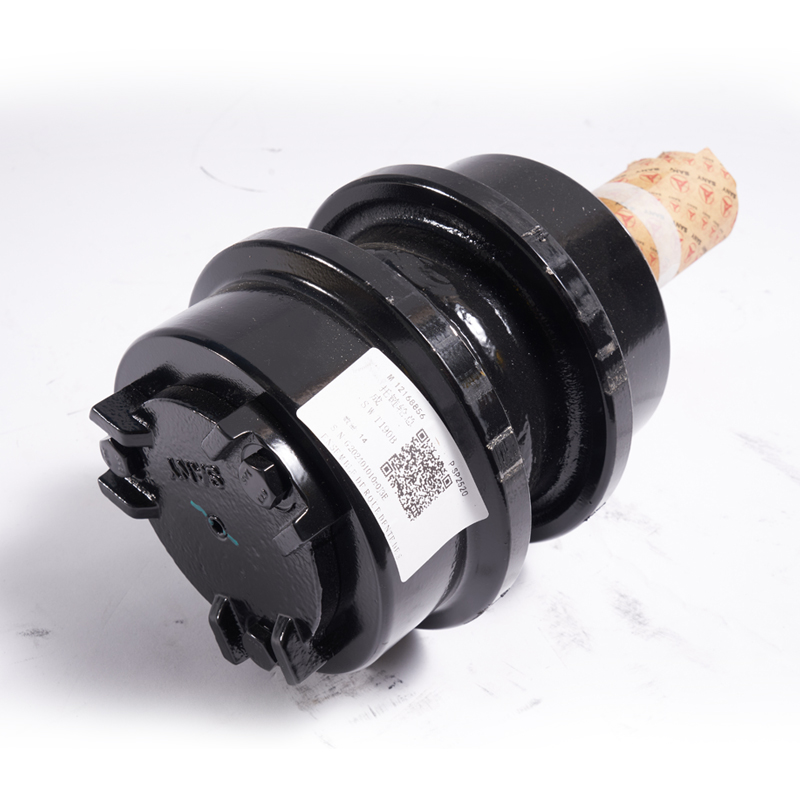

SANY Carrier Roller 12168856 - complete roller, flanged body and mounting bracket at each end

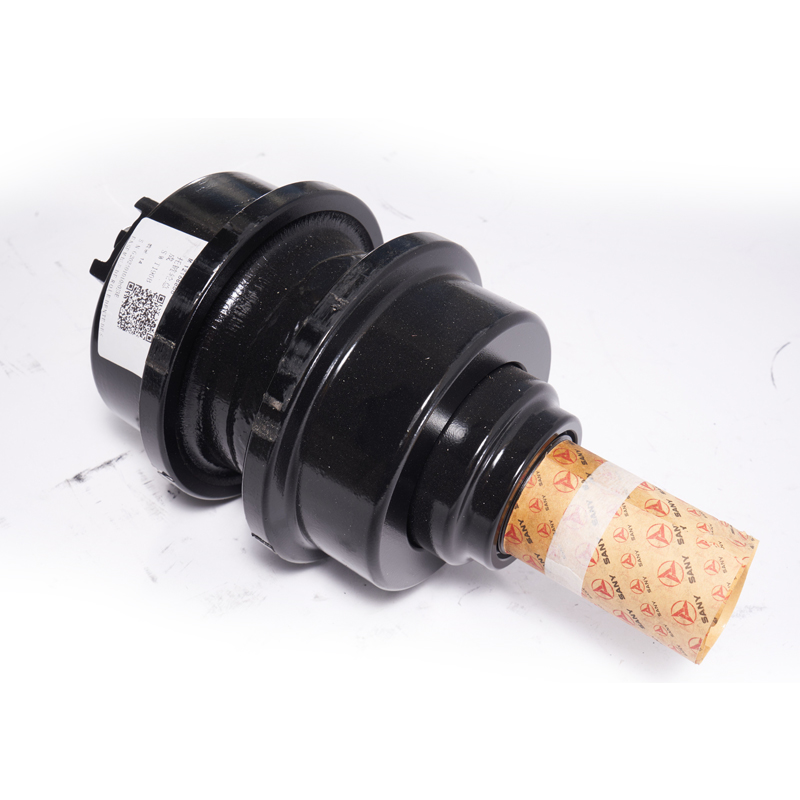

SANY Carrier Roller 12168856 - flanged running surface and shaft end

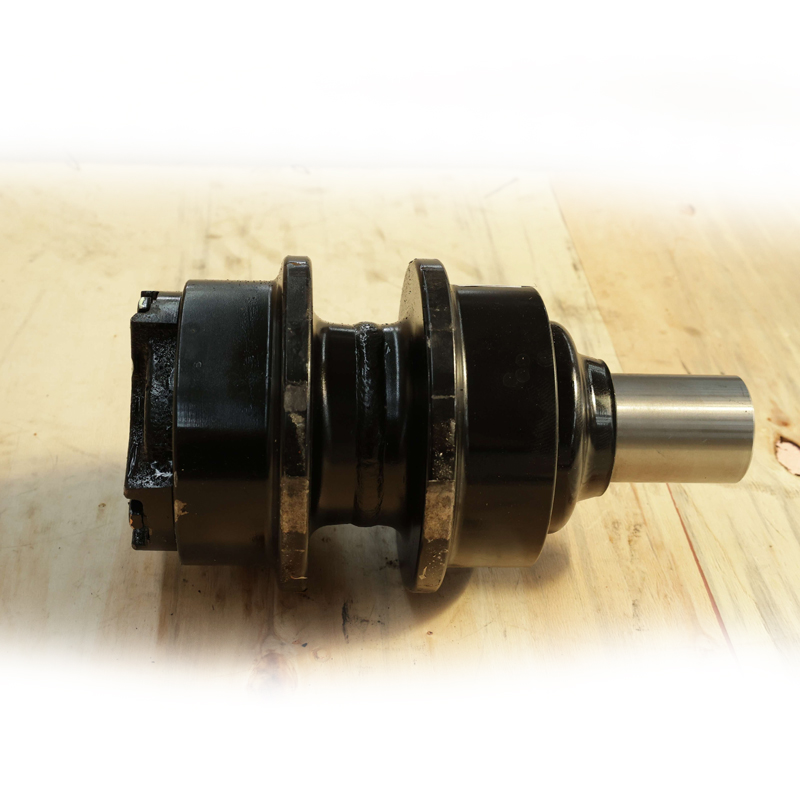

SANY Carrier Roller 12168856 - side view, shaft and end cap

Trust and Service

• Cross-referenced part number verified against the SANY SY215 / SY235 / SY205 application list.
• Genuine SANY Parts, OEM Replacement Parts and Selected Aftermarket Parts options based on part number and availability.
• Stock and lead time confirmed on inquiry - no surprise ETAs.
• Export-ready packaging and worldwide shipping supported on request.
• Specs (21.9 kg, 166.54 x 166.53 x 293.5 mm, steel) verified against the parameter sheet.

Related Products

Related parts listed below are not direct substitutes for 12168856. They are alternative part numbers for the undercarriage and track system of SANY machinery. Always confirm compatibility before ordering.

• 12123787 - SANY Carrier Roller
• 13861265 - SANY Track Shoe
• 60110071 - SANY Track Nut

Genuine SANY Parts, OEM Replacement Parts & Selected Aftermarket Parts

The 12168856 carrier roller can be supplied as Genuine SANY Parts, OEM Replacement Parts or Selected Aftermarket Parts depending on stock and lead time. Availability depends on the specific part number.

Genuine SANY Parts - original SANY-branded parts where available. These carry the SANY part number 12168856 and match the original fitment directly.

OEM Replacement Parts - parts supplied according to OEM specifications from qualified manufacturers, cross-referenced to the SANY part number for the same SY215 / SY235 / SY205 application.

Selected Aftermarket Parts - selected replacement alternatives for customers seeking different cost options, checked against the same 166.54 x 166.53 x 293.5 mm envelope before we quote.

FAQ

General FAQ

1. Q: Do you have stock?
A: Stock varies by part number. Send your inquiry and we will confirm current availability.

2. Q: Do you ship worldwide?
A: Yes. We support worldwide shipping; lead time depends on destination and part.

3. Q: Is this genuine SANY?
A: Supply options include Genuine SANY Parts, OEM Replacement Parts and Selected Aftermarket Parts. We confirm which is available for your part number.

4. Q: Can I get a quotation first?
A: Yes. Send part number, quantity and machine model - we reply with options and lead time.

5. Q: What information do you need before ordering?
A: The SANY part number, your machine model and serial number, the quantity, and the destination port or address.

6. Q: How long is delivery?
A: Delivery depends on the part number and destination. We confirm current lead time together with your quotation.

7. Q: What if the part does not fit?
A: Contact us with photos and serial number before returning. We help verify fitment.

12168856 Specific FAQ

1. Q: Which SANY models does 12168856 fit?
A: SY215, SY235 and SY205 machines.

2. Q: What is the material and weight?
A: Steel, 21.9 kg.

3. Q: What are the dimensions?
A: 166.54 x 166.53 x 293.5 mm as given on the parameter sheet. Compare the old roller to be sure before ordering.

4. Q: What does a carrier roller do?
A: It is the upper roller that carries the track chain on the track frame. It holds the chain up and in line so the chain runs at the correct height between the idler and the drive sprocket.

5. Q: How do I know if the carrier roller needs replacing?
A: Check the running surface for flats, steps or heavy scoring, look for oil weeping from the shaft end, and turn the roller by hand to feel for roughness or play. A worn carrier roller usually shows up as a chain that runs low and slack. If you are unsure which position on your machine carries part number 12168856, send us a photo together with your machine serial number.

Request the Correct Carrier Roller

Send your inquiry with: Name, Email, Phone, Message (Tell us your machine model and part number 12168856). Click Send Inquiry on the inquiry panel.
