SANY Track Nut 60110067 for SY135 / SY235 / SY205 / SY215

Quick Specs

Product Introduction

The 60110067 track nut is the undercarriage fastener used on SANY SY135, SY235, SY205 and SY215 machines. It is made from 40Cr, weighs 0.105 kg and measures 30 x 30 x 20 mm.

A track nut secures the track bolt that clamps the track shoe to the track link. Undercarriage fasteners work under constant impact and vibration, so this joint has to hold its clamping load over long service intervals rather than simply stay tight for a few hours. When a nut works loose or is lost, the shoe starts moving on the link: the bolt holes elongate, the bolt itself is loaded in shear instead of tension, and in the worst case the shoe can be thrown off the chain. For that reason track nuts are normally renewed together with the track bolts and shoes when a section of the undercarriage is re-shoed. If you are ordering for a repair, check 60110067 against the number on the nut you are taking off.

Application

Used as the undercarriage track nut for SANY SY135, SY235, SY205 and SY215 machines under part number 60110067. It is fitted to the track bolt that holds the track shoe to the track link, so the thread size and pitch, the across-flats dimension and the overall height are the details worth comparing against the nut you are replacing.

Specifications

Compatible SANY Models

• SY135 - Track Nut 60110067 for SANY SY135 machines.
• SY235 - Track Nut 60110067 for SANY SY235 machines.
• SY205 - Track Nut 60110067 for SANY SY205 machines.
• SY215 - Track Nut 60110067 for SANY SY215 machines.

How to Confirm the Correct Part

• Match the part number "60110067" against the nut being replaced.
• Confirm your machine model is SY135, SY235, SY205 or SY215.
• Check the overall dimensions 30 x 30 x 20 mm and net weight 0.105 kg against the old nut.
• Check the thread size and pitch against the track bolt the nut is going onto.
• Inspect the old nuts for corrosion, rounded hexagon corners or damaged threads before ordering, since a damaged nut usually means the bolt should be renewed as well.
• Contact Averdyn with your machine serial number if you are unsure about fitment.

Why Choose Averdyn

Your SANY Undercarriage Parts Contact

Averdyn is your sourcing contact for track nuts, track bolts, track shoes, rollers and other undercarriage components for SANY machinery. Tell us part number 60110067 and your machine model - we handle the cross-reference and supply options for you.

Product Overview of 60110067

The 60110067 undercarriage track nut fits SANY SY135, SY235, SY205 and SY215 machines. 40Cr, 0.105 kg, 30 x 30 x 20 mm. See the image above for the actual part before ordering.

Technical Inquiry and Delivery Planning

Send your machine serial number, part number and quantity. We confirm fitment, supply options and current lead time before you commit to an order.

Product Detail Photos

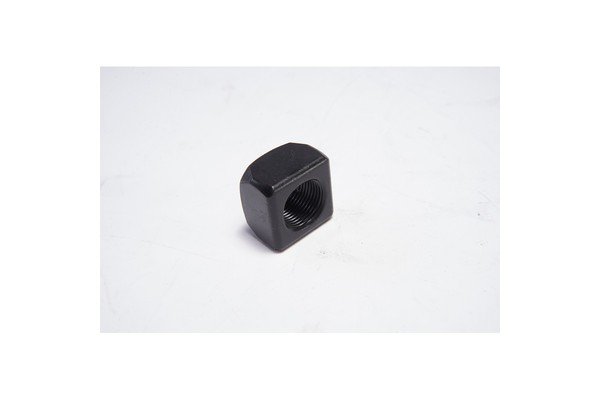

SANY Track Nut 60110067 - hexagon body and internal thread

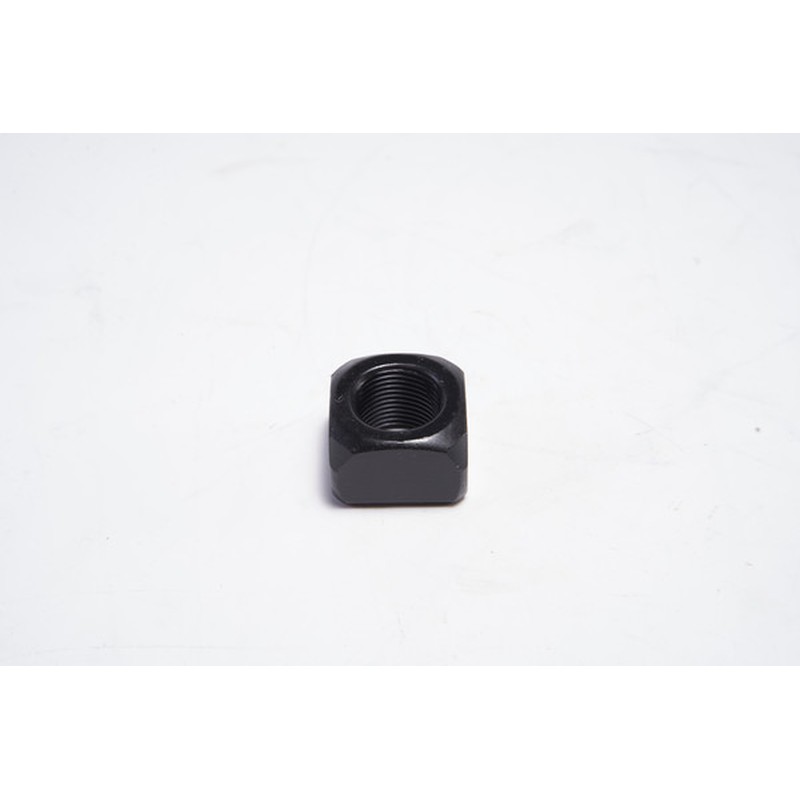

SANY Track Nut 60110067 - internal thread and seat face

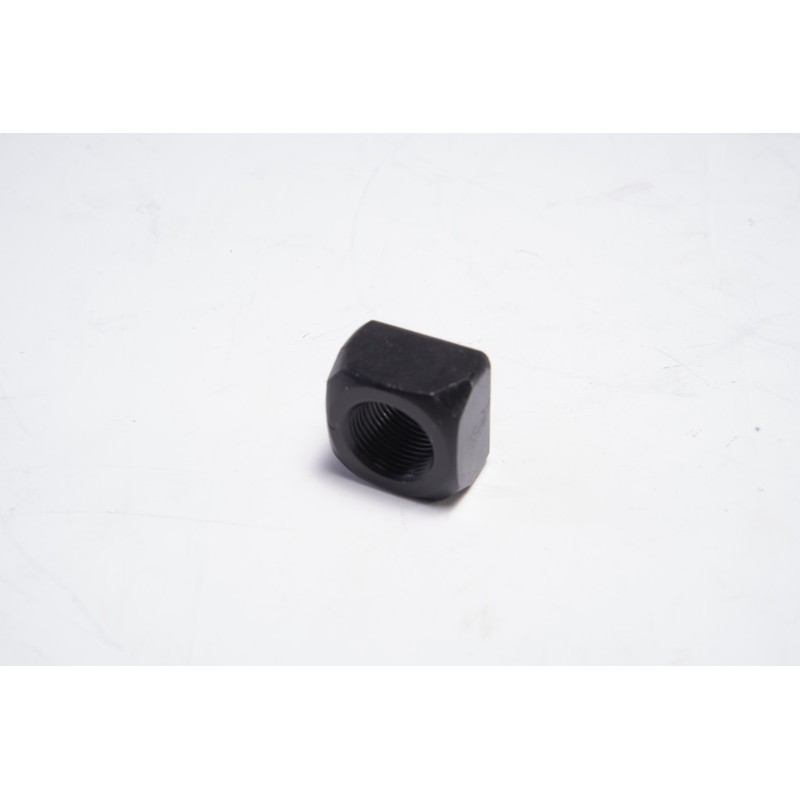

SANY Track Nut 60110067 - side view of the hexagon body

Trust and Service

• Cross-referenced part number verified against the SANY SY135 / SY235 / SY205 / SY215 application list.
• Genuine SANY / OEM / Selected Aftermarket supply options based on part number and availability.
• Stock and lead time confirmed on inquiry - no surprise ETAs.
• Export-ready packaging and worldwide shipping supported on request.
• Specs (0.105 kg, 30 x 30 x 20 mm, 40Cr) verified against the parameter sheet.

Related Products

Related parts listed below are not direct substitutes for 60110067. They are alternative part numbers for the undercarriage of SANY machinery. Always confirm compatibility before ordering.

• SSY005194639 - SANY Track Bolt (multiple SANY machine types)
• 60053662 - SANY Track Shoe (SY365 / SY335)
• 12123787 - SANY Carrier Roller Assembly (SY365 / SY245 / SY385)

Original vs OEM

The 60110067 track nut is supplied as Genuine SANY, OEM or Selected Aftermarket depending on stock and lead time. All options are cross-referenced to the original SANY part number and intended for the same SY135 / SY235 / SY205 / SY215 application.

FAQ

General FAQ

1. Q: Do you have stock?
A: Stock varies by part number. Send your inquiry and we will confirm current availability.

2. Q: Do you ship worldwide?
A: Yes. We support worldwide shipping; lead time depends on destination and part.

3. Q: Is this genuine SANY?
A: Supply options include Genuine SANY, OEM and Selected Aftermarket. We confirm which is available for your part number.

4. Q: Can I get a quotation first?
A: Yes. Send part number, quantity and machine model - we reply with options and lead time.

5. Q: What information do you need before ordering?
A: The SANY part number, your machine model and serial number, the quantity, and the destination port or address.

6. Q: How long is delivery?
A: Delivery depends on the part number and destination. We confirm current lead time together with your quotation.

7. Q: What if the part does not fit?
A: Contact us with photos and serial number before returning. We help verify fitment.

60110067 Specific FAQ

1. Q: Which SANY models does 60110067 fit?
A: SY135, SY235, SY205 and SY215 machines.

2. Q: What is the material and weight?
A: 40Cr, 0.105 kg.

3. Q: What are the dimensions?
A: 30 x 30 x 20 mm as given on the parameter sheet. Measure the old nut to be sure before ordering.

4. Q: Where is this nut used on the machine?
A: It is an undercarriage fastener: the track nut that works with the track bolt holding the track shoe to the track link. If you are unsure whether a specific nut on your machine is this part number, send us a photo together with your machine serial number.

5. Q: Do I need to replace the track bolts at the same time?
A: If the bolts have been in service for a long time, or the old nuts came loose, corroded or damaged, renewing nuts and bolts together is the usual practice. Send us the machine model and we will quote both.

Request the Correct Track Nut

Send your inquiry with: Name, Email, Phone, Message (Tell us your machine model and part number 60110067). Click Send Inquiry on the inquiry panel.
