SANY DLI Dust Ring 60055872 for SY215 / SY235 / SY335 / SY365

Quick Specs

Product Introduction

The 60055872 DLI dust ring is a rubber seal used at the pin joints of SANY excavators including the SY215, SY235, SY245, SY335, SY365 and SY205. It measures 105 x 105 x 8 mm and weighs 0.03 kg.

A dust ring sits at the exposed face of a pin joint and keeps dirt, grit, mud and water away from the sealed bearing surface behind it. Without it, abrasive material works its way into the pin and bushing clearance, the grease film breaks down, and the joint starts to wear from the outside in - the pin scuffs, the bushing opens up, and the joint develops play that is felt at the bucket or boom. Because the ring is a low-cost consumable that protects a far more expensive pin and bushing assembly, it is normally renewed whenever the joint is opened for a pin or bushing replacement. If you are ordering for a repair, check 60055872 against the number on the ring you are taking off.

Application

Used as the pin-joint dust ring for SANY SY215, SY235, SY245, SY335, SY365 and SY205 excavators under part number 60055872. It is fitted at the exposed face of the pin joint to keep dirt and water out of the sealed bearing surface. For fitting, the details worth comparing against the ring you are replacing are the 105 x 105 x 8 mm overall size, the sealing lip profile and the condition of the rubber.

Specifications

Compatible SANY Models

• SY205 - DLI Dust Ring 60055872 for SANY SY205 machines.
• SY215 - DLI Dust Ring 60055872 for SANY SY215 machines.
• SY235 - DLI Dust Ring 60055872 for SANY SY235 machines.
• SY245 - DLI Dust Ring 60055872 for SANY SY245 machines.
• SY335 - DLI Dust Ring 60055872 for SANY SY335 machines.
• SY365 - DLI Dust Ring 60055872 for SANY SY365 machines.

How to Confirm the Correct Part

• Match the part number "60055872" against the ring being replaced.
• Confirm your machine model is one of SY205, SY215, SY235, SY245, SY335 or SY365.
• Check the overall size 105 x 105 x 8 mm and net weight 0.03 kg against the old ring.
• Look at the sealing lip: if the lip is torn, hardened or has lost its shape, the ring has reached the end of its service life and should be renewed.
• Inspect the pin joint it protects as well - a dust ring that has failed is often the first sign that grit has already reached the pin and bushing.
• Contact Averdyn with your machine serial number if you are unsure about fitment.

Why Choose Averdyn

Your SANY Seal and Dust Ring Sourcing Contact

Averdyn is your sourcing contact for DLI dust rings, oil seals, O-rings, sealing rings and repair kits for SANY machinery. Tell us part number 60055872 and your machine model - we handle the cross-reference and supply options for you.

Product Overview of 60055872

The 60055872 DLI dust ring fits SANY SY205, SY215, SY235, SY245, SY335 and SY365 machines. Rubber, 0.03 kg, 105 x 105 x 8 mm. See the image above for the actual part before ordering.

Technical Inquiry and Delivery Planning

Send your machine serial number, part number and quantity. We confirm fitment, supply options and current lead time before you commit to an order.

Product Detail Photos

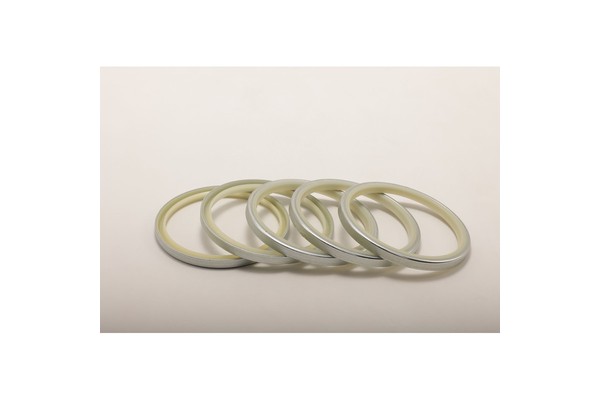

SANY DLI Dust Ring 60055872 - rings showing the moulded sealing lip

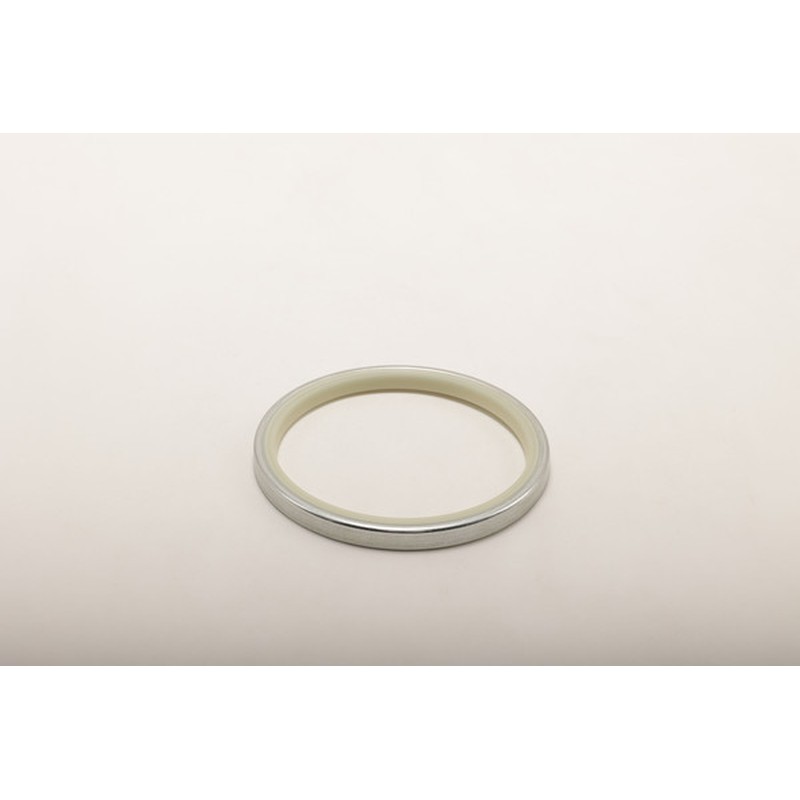

SANY DLI Dust Ring 60055872 - single ring, sealing lip face

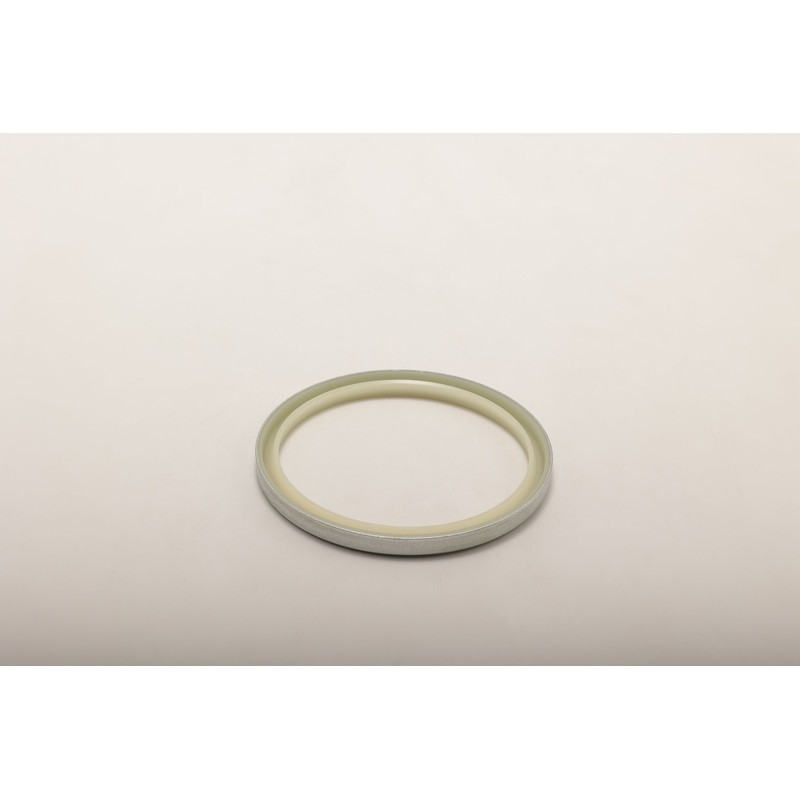

SANY DLI Dust Ring 60055872 - ring on edge, section height

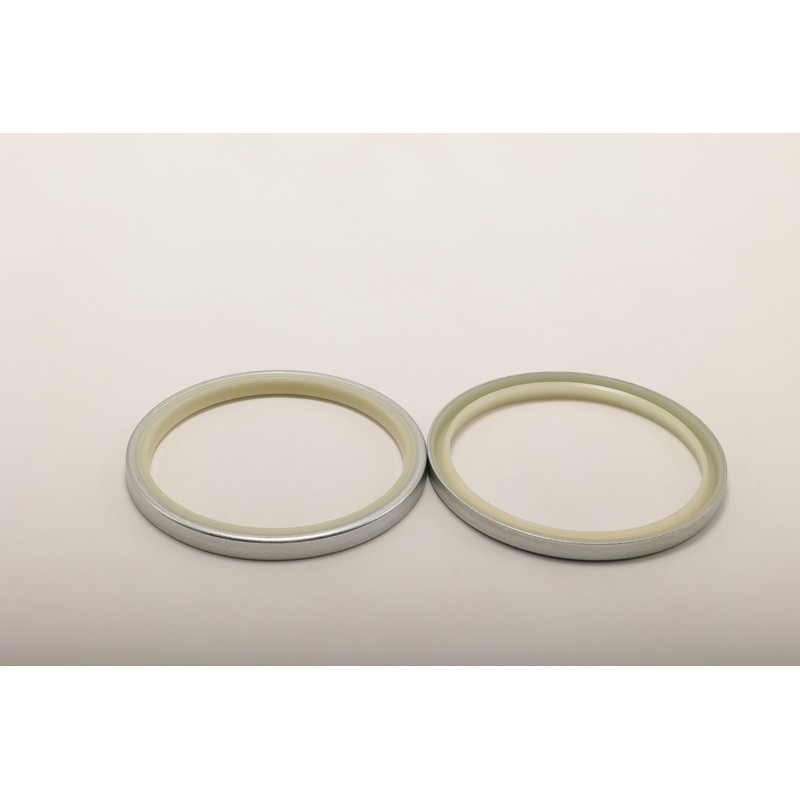

SANY DLI Dust Ring 60055872 - two rings side by side

Trust and Service

• Cross-referenced part number verified against the SANY SY205 / SY215 / SY235 / SY245 / SY335 / SY365 application list.
• Genuine SANY / OEM / Selected Aftermarket supply options based on part number and availability.
• Stock and lead time confirmed on inquiry - no surprise ETAs.
• Export-ready packaging and worldwide shipping supported on request.
• Specs (0.03 kg, 105 x 105 x 8 mm, rubber) verified against the parameter sheet.

Related Products

Related parts listed below are not direct substitutes for 60055872. They are alternative part numbers for sealing and repair applications on SANY machinery. Always confirm compatibility before ordering.

• 60320326 - SANY Oil Seal
• 60355203 - SANY Travel Reducer Repair Kit
• 60212253K - SANY Hydraulic Pump Repair Kit

Original vs OEM

The 60055872 DLI dust ring is supplied as Genuine SANY, OEM or Selected Aftermarket depending on stock and lead time. All options are cross-referenced to the original SANY part number and intended for the same SY205 / SY215 / SY235 / SY245 / SY335 / SY365 application.

FAQ

General FAQ

1. Q: Do you have stock?
A: Stock varies by part number. Send your inquiry and we will confirm current availability.

2. Q: Do you ship worldwide?
A: Yes. We support worldwide shipping; lead time depends on destination and part.

3. Q: Is this genuine SANY?
A: Supply options include Genuine SANY, OEM and Selected Aftermarket. We confirm which is available for your part number.

4. Q: Can I get a quotation first?
A: Yes. Send part number, quantity and machine model - we reply with options and lead time.

5. Q: What information do you need before ordering?
A: The SANY part number, your machine model and serial number, the quantity, and the destination port or address.

6. Q: How long is delivery?
A: Delivery depends on the part number and destination. We confirm current lead time together with your quotation.

7. Q: What if the part does not fit?
A: Contact us with photos and serial number before returning. We help verify fitment.

60055872 Specific FAQ

1. Q: Which SANY models does 60055872 fit?
A: SY205, SY215, SY235, SY245, SY335 and SY365 machines.

2. Q: What is the material and weight?
A: Rubber, 0.03 kg.

3. Q: What are the dimensions?
A: 105 x 105 x 8 mm as given on the parameter sheet. Measure the old ring to be sure before ordering.

4. Q: Where is this dust ring used on the machine?
A: It is a pin-joint dust ring: it sits at the exposed face of a pin joint and keeps dirt and water away from the sealed bearing surface. If you are unsure which joint on your machine carries part number 60055872, send us a photo together with your machine serial number.

5. Q: How many should I order?
A: It depends on how many joints you are re-sealing. A pin or bushing replacement usually calls for the dust ring at that joint to be renewed at the same time. Send us your machine model and we will help work out the quantity.
